Briggs and Stratton 163cc 5hp Engine OHV 3/4 x 2-7/16" #106232-0079
HomeStore

Briggs and Stratton 163cc 5hp Engine OHV 3/4 x 2-7/16" #106232-0079

Briggs and Stratton 163cc 5hp Engine OHV 3/4 x 2-7/16" #106232-0079



106232-0079-F1

Engine Specifications

Engine Fuel Gasoline
Configuration Horizontal
Cylinders One
SKU 106232-0079-F1
Air Cleaner AIR CLEANER, DUAL ELEMENT OVAL
Bearings BEARINGS, BALL MAG
Bore Type Sleevebo
Bore Size 2.677
Stroke 1.770
Casing Clamps CASING CLAMP & SCREW INSTALLE
Controls Groups CONTROL GROUP 5, UTILIT
Cylinder Head CYLINDER, ALUMINUM W/C.I.SLEEVE
Deflectors DEFLECTORS, SIDE OUT W/SPARK ARRESTO
Dipsticks DIPSTICK, LOW MOUNT,
Oil Drain OIL DRAIN, DUAL
Flywheel FLYWHEEL, HVY, CAST IRON
Exhaust MUFFLER, LO-TONE INSTALLED
Spark Plug SPARK PLUG, RESISTOR
Starting System STARTER, REWIND POSITION - 10:00 O'CLOC
Model/Type/Trim 106232-0079-F1
Air Cleaner Dual Element - Oval
Alternator Without
Carburetor Standard
Casing Clamp Installed
Controls Manual Friction/Equip for Rem
Crankshaft 3/4" Straight - 2.42 EXT
Crankshaft Details 5/16-24 (Tap) (Q Type)
Emissions Certification EPA EXH, EPA EVAP,EU, CHINA
Engine Idle Speed 1450 +200/-150 RPM
Engine Sold In USA (49), EU, UK, CHINA
Engine Speed 3600+/-100
Flywheel Heavy - Cast Iron
Fuel Tank P290 Satin Black CIC
Label Power 5 HP Rewind Label
Rewind Position 10:00



$349.00
Briggs and Stratton 163cc 5hp Engine OHV 3/4 x 2-7/16" #106232-0079—
$349.00

More Images

Briggs and Stratton 163cc 5hp Engine OHV 3/4 x 2-7/16" #106232-0079 - Image 2

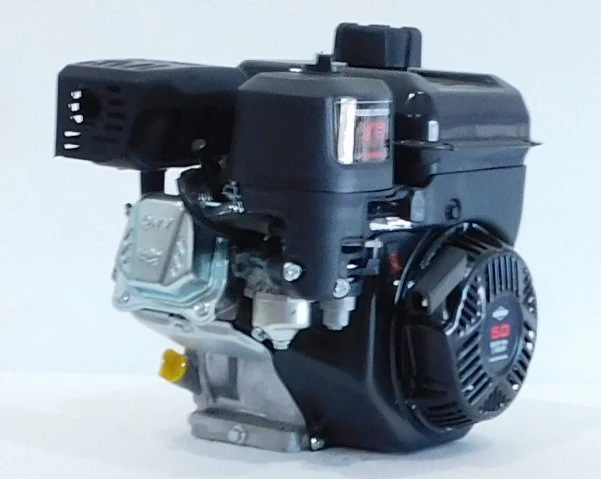

Briggs and Stratton 163cc 5hp Engine OHV 3/4 x 2-7/16" #106232-0079 - Image 3

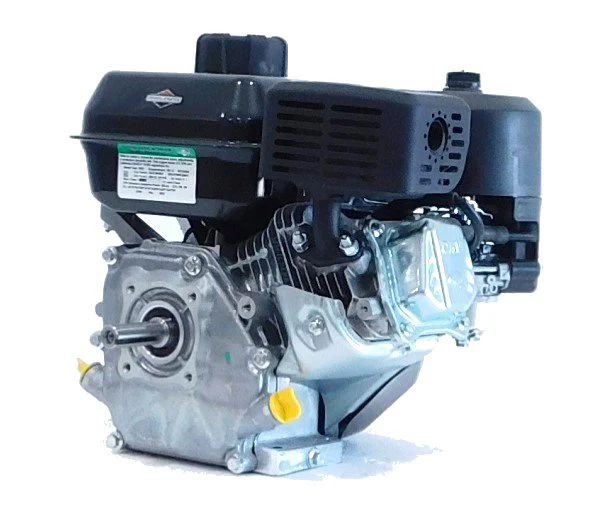

Briggs and Stratton 163cc 5hp Engine OHV 3/4 x 2-7/16" #106232-0079 - Image 4

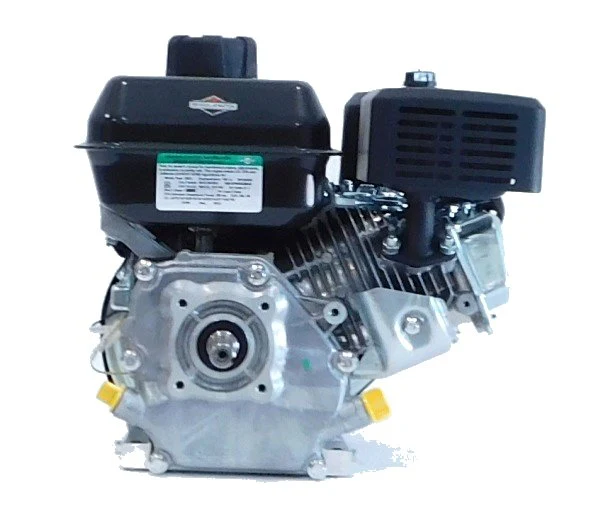

Briggs and Stratton 163cc 5hp Engine OHV 3/4 x 2-7/16" #106232-0079 - Image 5

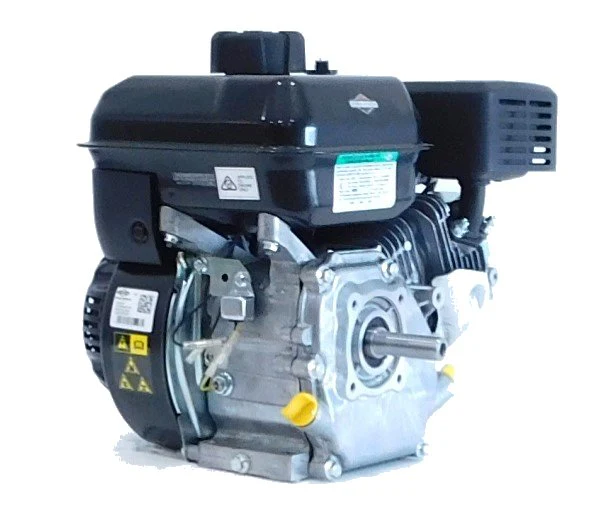

Briggs and Stratton 163cc 5hp Engine OHV 3/4 x 2-7/16" #106232-0079 - Image 6

Briggs and Stratton 163cc 5hp Engine OHV 3/4 x 2-7/16" #106232-0079



106232-0079-F1

Engine Specifications

Engine Fuel Gasoline
Configuration Horizontal
Cylinders One
SKU 106232-0079-F1
Air Cleaner AIR CLEANER, DUAL ELEMENT OVAL
Bearings BEARINGS, BALL MAG
Bore Type Sleevebo
Bore Size 2.677
Stroke 1.770
Casing Clamps CASING CLAMP & SCREW INSTALLE
Controls Groups CONTROL GROUP 5, UTILIT
Cylinder Head CYLINDER, ALUMINUM W/C.I.SLEEVE
Deflectors DEFLECTORS, SIDE OUT W/SPARK ARRESTO
Dipsticks DIPSTICK, LOW MOUNT,
Oil Drain OIL DRAIN, DUAL
Flywheel FLYWHEEL, HVY, CAST IRON
Exhaust MUFFLER, LO-TONE INSTALLED
Spark Plug SPARK PLUG, RESISTOR
Starting System STARTER, REWIND POSITION - 10:00 O'CLOC
Model/Type/Trim 106232-0079-F1
Air Cleaner Dual Element - Oval
Alternator Without
Carburetor Standard
Casing Clamp Installed
Controls Manual Friction/Equip for Rem
Crankshaft 3/4" Straight - 2.42 EXT
Crankshaft Details 5/16-24 (Tap) (Q Type)
Emissions Certification EPA EXH, EPA EVAP,EU, CHINA
Engine Idle Speed 1450 +200/-150 RPM
Engine Sold In USA (49), EU, UK, CHINA
Engine Speed 3600+/-100
Flywheel Heavy - Cast Iron
Fuel Tank P290 Satin Black CIC
Label Power 5 HP Rewind Label
Rewind Position 10:00



Product Information

Shipping & Returns

Description



106232-0079-F1

Engine Specifications

Engine Fuel Gasoline
Configuration Horizontal
Cylinders One
SKU 106232-0079-F1
Air Cleaner AIR CLEANER, DUAL ELEMENT OVAL
Bearings BEARINGS, BALL MAG
Bore Type Sleevebo
Bore Size 2.677
Stroke 1.770
Casing Clamps CASING CLAMP & SCREW INSTALLE
Controls Groups CONTROL GROUP 5, UTILIT
Cylinder Head CYLINDER, ALUMINUM W/C.I.SLEEVE
Deflectors DEFLECTORS, SIDE OUT W/SPARK ARRESTO
Dipsticks DIPSTICK, LOW MOUNT,
Oil Drain OIL DRAIN, DUAL
Flywheel FLYWHEEL, HVY, CAST IRON
Exhaust MUFFLER, LO-TONE INSTALLED
Spark Plug SPARK PLUG, RESISTOR
Starting System STARTER, REWIND POSITION - 10:00 O'CLOC
Model/Type/Trim 106232-0079-F1
Air Cleaner Dual Element - Oval
Alternator Without
Carburetor Standard
Casing Clamp Installed
Controls Manual Friction/Equip for Rem
Crankshaft 3/4" Straight - 2.42 EXT
Crankshaft Details 5/16-24 (Tap) (Q Type)
Emissions Certification EPA EXH, EPA EVAP,EU, CHINA
Engine Idle Speed 1450 +200/-150 RPM
Engine Sold In USA (49), EU, UK, CHINA
Engine Speed 3600+/-100
Flywheel Heavy - Cast Iron
Fuel Tank P290 Satin Black CIC
Label Power 5 HP Rewind Label
Rewind Position 10:00
