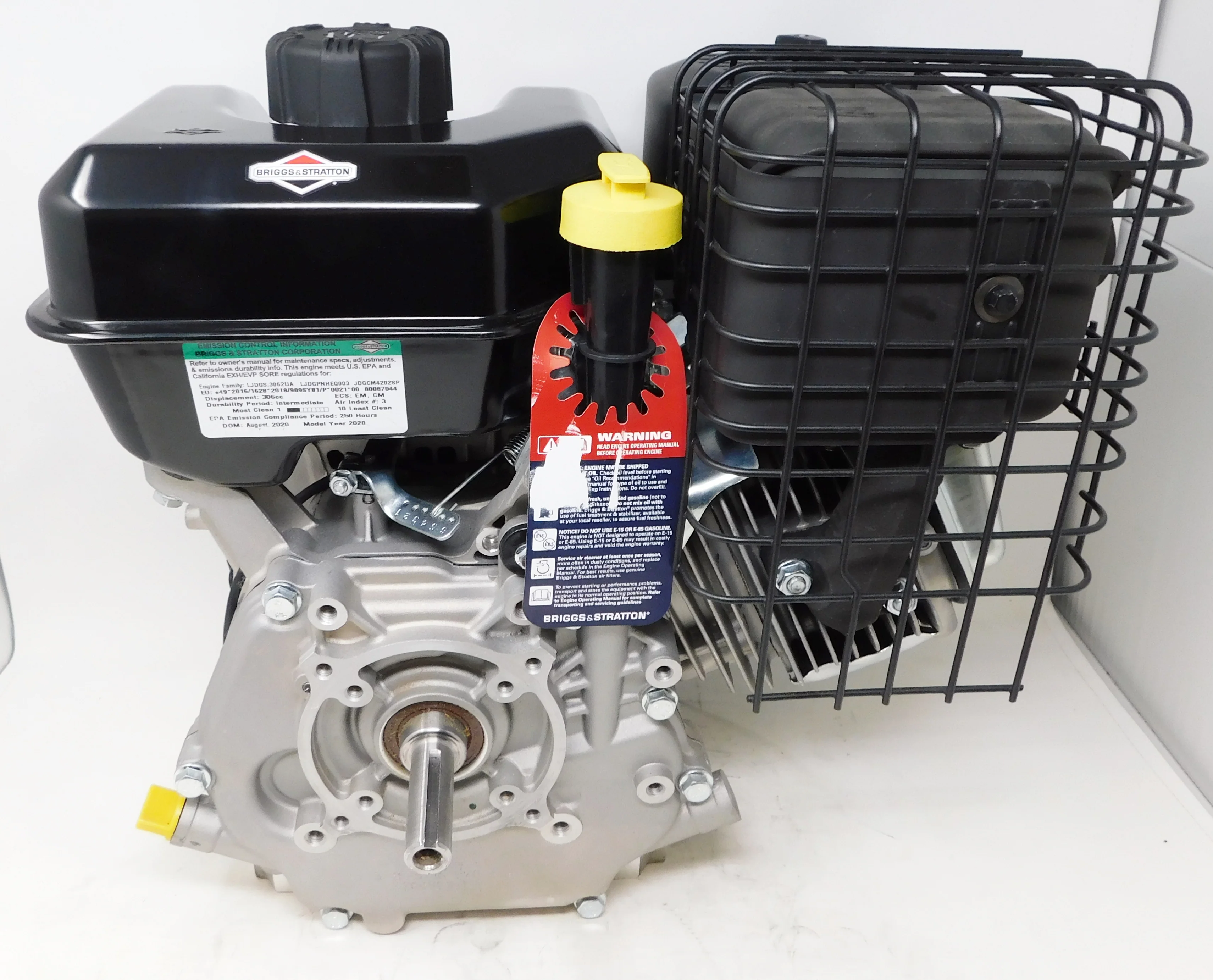

Briggs & Stratton 14.5 TP 306cc OHV Engine 3/4" x 2-21/32" Fits Troy Bilt Tillers #19N132-0239
Briggs & Stratton 14.5 TP 306cc OHV Engine 3/4" x 2-21/32" Fits Troy Bilt Tillers #19N132-0239
More power. More durability. Max performance. With Overhead Valve (OHV) technology for cleaner, cooler operation, plus our DuraLube Splash Lubrication System for greater precision, the 1450 Series delivers exactly what you need to meet increasing challenges.
14.5tp Briggs & Stratton OHV Engine
Replaces 10hp Series
3/4" x 2-21/32" shaft, tapped 3/8" with keyway.
3/4" x 2-21/32" shaft, tapped 3/8" with keyway.

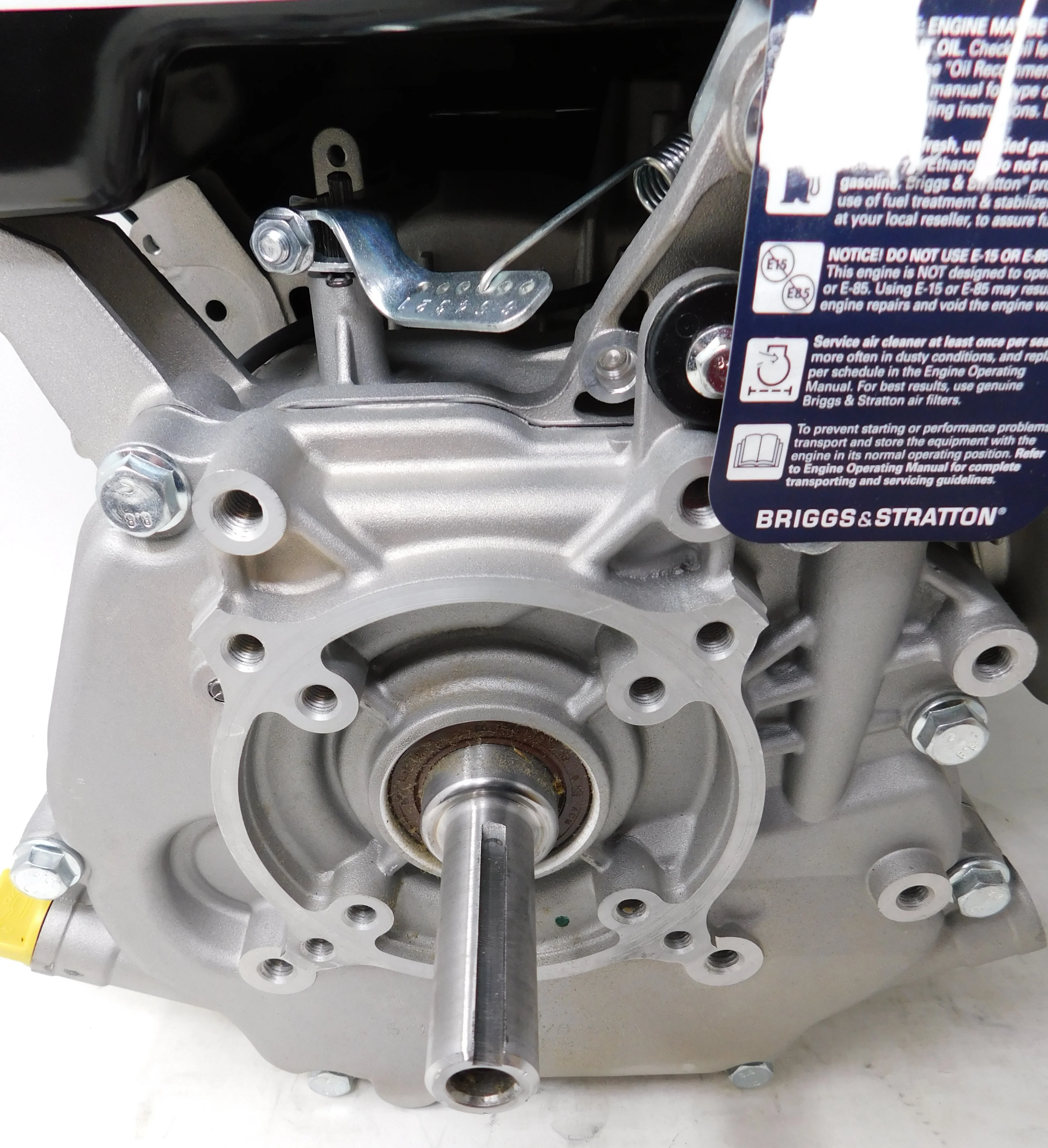

Ball bearing PTO, cast iron sleeve.
Common Troy Bilt Horse Replacement Engine
Model 19N132-0239
69 lbs
19N132-0239-F1
Engine Specifications
| Engine Fuel | Gasoline |
| Configuration | Horizontal |
| Cylinders | One |
| SKU | 19N132-0239-F1 |
| Air Cleaner | AIR CLEANER, CARTRIDGE W/PRE FI |
| Bearings | BEARINGS, DUAL BALL W/OIL SEAL |
| Blower Housing | BLOWER HOUSING 290 SATIN BLACK |
| Bore Type | Sleevebo |
| Bore Size | 3.220 |
| Stroke | 2.280 |
| Casing Clamps | CASING CLAMP & SCREW INSTALLE |
| Controls Groups | CONTROL GROUP 8, UTILIT |
| Cylinder Head | CYLINDER, ALUMINUM W/C.I.SLEEVE |
| Deflectors | DEFLECTORS, WITHOUT |
| Dipsticks | DIPSTICK, LOW MOUNT, |
| Oil Drain | OIL FILL, DUAL |
| Flywheel | FLYWHEEL, HVY, CAST IRON, REW ONLY |
| Exhaust | MUFFLER, LO-TONE, TUBE OUT |
| Spark Plug | SPARK PLUG, NON-RESI |
| Starting System | STARTER, REWIND POSITION - 2:00 O'CLOCK |
$495.00
Briggs & Stratton 14.5 TP 306cc OHV Engine 3/4" x 2-21/32" Fits Troy Bilt Tillers #19N132-0239—
$495.00
More Images
Briggs & Stratton 14.5 TP 306cc OHV Engine 3/4" x 2-21/32" Fits Troy Bilt Tillers #19N132-0239
More power. More durability. Max performance. With Overhead Valve (OHV) technology for cleaner, cooler operation, plus our DuraLube Splash Lubrication System for greater precision, the 1450 Series delivers exactly what you need to meet increasing challenges.
14.5tp Briggs & Stratton OHV Engine
Replaces 10hp Series
3/4" x 2-21/32" shaft, tapped 3/8" with keyway.
3/4" x 2-21/32" shaft, tapped 3/8" with keyway.
Ball bearing PTO, cast iron sleeve.
Common Troy Bilt Horse Replacement Engine
Model 19N132-0239
69 lbs
19N132-0239-F1
Engine Specifications
| Engine Fuel | Gasoline |
| Configuration | Horizontal |
| Cylinders | One |
| SKU | 19N132-0239-F1 |
| Air Cleaner | AIR CLEANER, CARTRIDGE W/PRE FI |
| Bearings | BEARINGS, DUAL BALL W/OIL SEAL |
| Blower Housing | BLOWER HOUSING 290 SATIN BLACK |
| Bore Type | Sleevebo |
| Bore Size | 3.220 |
| Stroke | 2.280 |
| Casing Clamps | CASING CLAMP & SCREW INSTALLE |
| Controls Groups | CONTROL GROUP 8, UTILIT |
| Cylinder Head | CYLINDER, ALUMINUM W/C.I.SLEEVE |
| Deflectors | DEFLECTORS, WITHOUT |
| Dipsticks | DIPSTICK, LOW MOUNT, |
| Oil Drain | OIL FILL, DUAL |
| Flywheel | FLYWHEEL, HVY, CAST IRON, REW ONLY |
| Exhaust | MUFFLER, LO-TONE, TUBE OUT |
| Spark Plug | SPARK PLUG, NON-RESI |
| Starting System | STARTER, REWIND POSITION - 2:00 O'CLOCK |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
More power. More durability. Max performance. With Overhead Valve (OHV) technology for cleaner, cooler operation, plus our DuraLube Splash Lubrication System for greater precision, the 1450 Series delivers exactly what you need to meet increasing challenges.
14.5tp Briggs & Stratton OHV Engine
Replaces 10hp Series
3/4" x 2-21/32" shaft, tapped 3/8" with keyway.
3/4" x 2-21/32" shaft, tapped 3/8" with keyway.
Ball bearing PTO, cast iron sleeve.
Common Troy Bilt Horse Replacement Engine
Model 19N132-0239
69 lbs
19N132-0239-F1
Engine Specifications
| Engine Fuel | Gasoline |
| Configuration | Horizontal |
| Cylinders | One |
| SKU | 19N132-0239-F1 |
| Air Cleaner | AIR CLEANER, CARTRIDGE W/PRE FI |
| Bearings | BEARINGS, DUAL BALL W/OIL SEAL |
| Blower Housing | BLOWER HOUSING 290 SATIN BLACK |
| Bore Type | Sleevebo |
| Bore Size | 3.220 |
| Stroke | 2.280 |
| Casing Clamps | CASING CLAMP & SCREW INSTALLE |
| Controls Groups | CONTROL GROUP 8, UTILIT |
| Cylinder Head | CYLINDER, ALUMINUM W/C.I.SLEEVE |
| Deflectors | DEFLECTORS, WITHOUT |
| Dipsticks | DIPSTICK, LOW MOUNT, |
| Oil Drain | OIL FILL, DUAL |
| Flywheel | FLYWHEEL, HVY, CAST IRON, REW ONLY |
| Exhaust | MUFFLER, LO-TONE, TUBE OUT |
| Spark Plug | SPARK PLUG, NON-RESI |
| Starting System | STARTER, REWIND POSITION - 2:00 O'CLOCK |
