Kawasaki Vertical 15.5 HP 603cc ES Engine 1-1/8" x 3.94" #FX481V-CS08
HomeStore

Kawasaki Vertical 15.5 HP 603cc ES Engine 1-1/8" x 3.94" #FX481V-CS08

Kawasaki Vertical 15.5 HP 603cc ES Engine 1-1/8" x 3.94" #FX481V-CS08

Kawasaki Vertical 15.5 HP 603cc ES Engine 1-1/8" x 3.94" #FX481V-CS08



15.5 hp
The FX481V engine is quality power that shows up to work, day after day.
Forced Air-Cooled V-twin 4-cycle Vertical Shaft OHV Gasoline Engine
15.5hp Kawasaki OHV
1-1/8" x 3-15/16" shaft
Electric start-shift type starter, 15amp alternator.
Less fuel tank
Less Muffler
Replacement engine for commercial zero turns and riding mowers.
3 year consumer from Kawasaki.
Model FX481V-CS08



With a metal engine cover and a heavy duty shift-type starter, this V-twin 4-cycle engine brings performance you can count on.
Specifications
Displacement
603 cc (36.8 cu. in.)
Number of Cylinders
2
Bore x Stroke
2.9 x 2.8 in. (73 x 72mm)
Compression Ratio
8.1:1
Oil capacity w/filter
1.8 U.S. qt ( 1.7 liters)
Maximum Power
15.5 hp (11.6 kW)
at 3,600 RPM
Maximum Torque
31.4 ft lbs (42.6 N·m)
at 1,800 RPM
Dry weight w/o muffler
89.7 lbs (36.7 kg)
$1,699.00
Kawasaki Vertical 15.5 HP 603cc ES Engine 1-1/8" x 3.94" #FX481V-CS08—
$1,699.00

More Images

Kawasaki Vertical 15.5 HP 603cc ES Engine 1-1/8" x 3.94" #FX481V-CS08 - Image 2

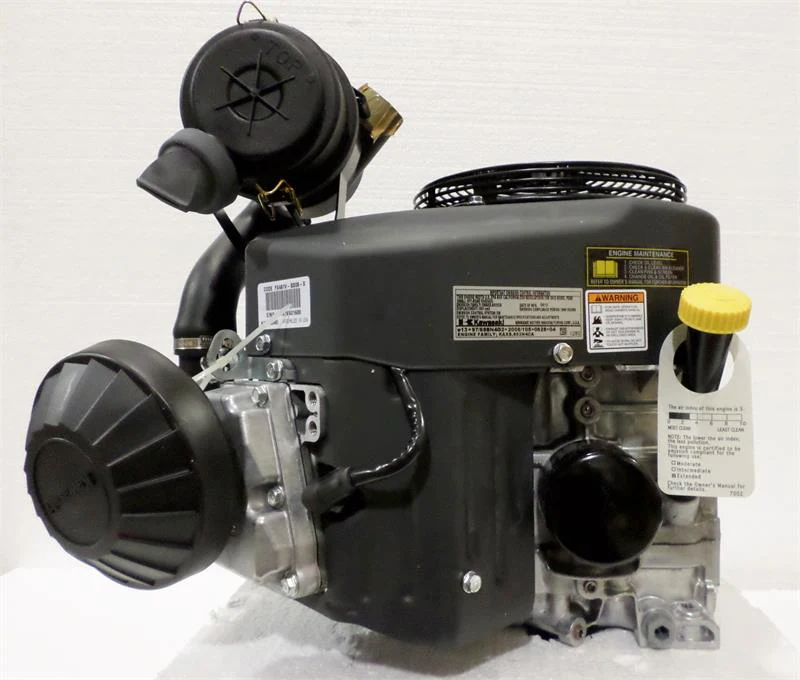

Kawasaki Vertical 15.5 HP 603cc ES Engine 1-1/8" x 3.94" #FX481V-CS08 - Image 3

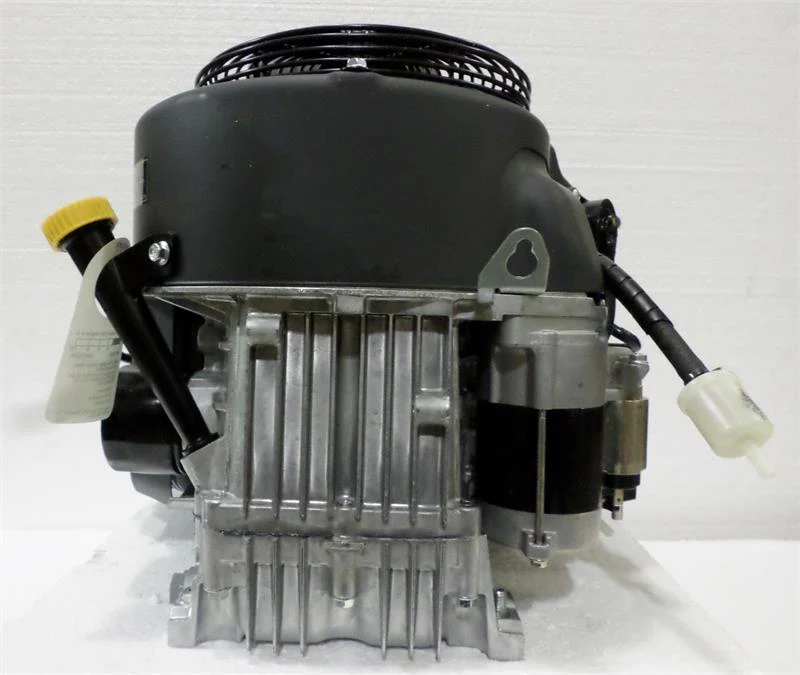

Kawasaki Vertical 15.5 HP 603cc ES Engine 1-1/8" x 3.94" #FX481V-CS08 - Image 4

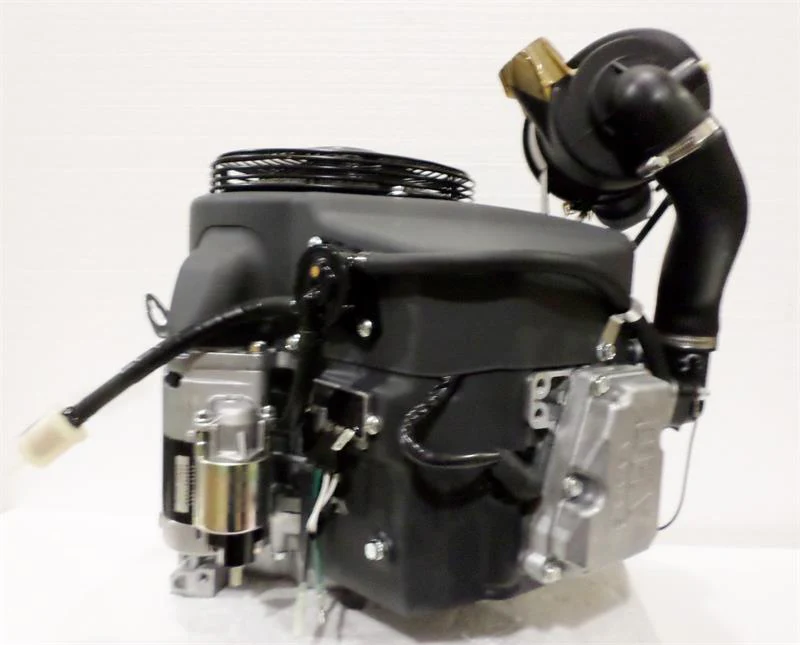

Kawasaki Vertical 15.5 HP 603cc ES Engine 1-1/8" x 3.94" #FX481V-CS08 - Image 5

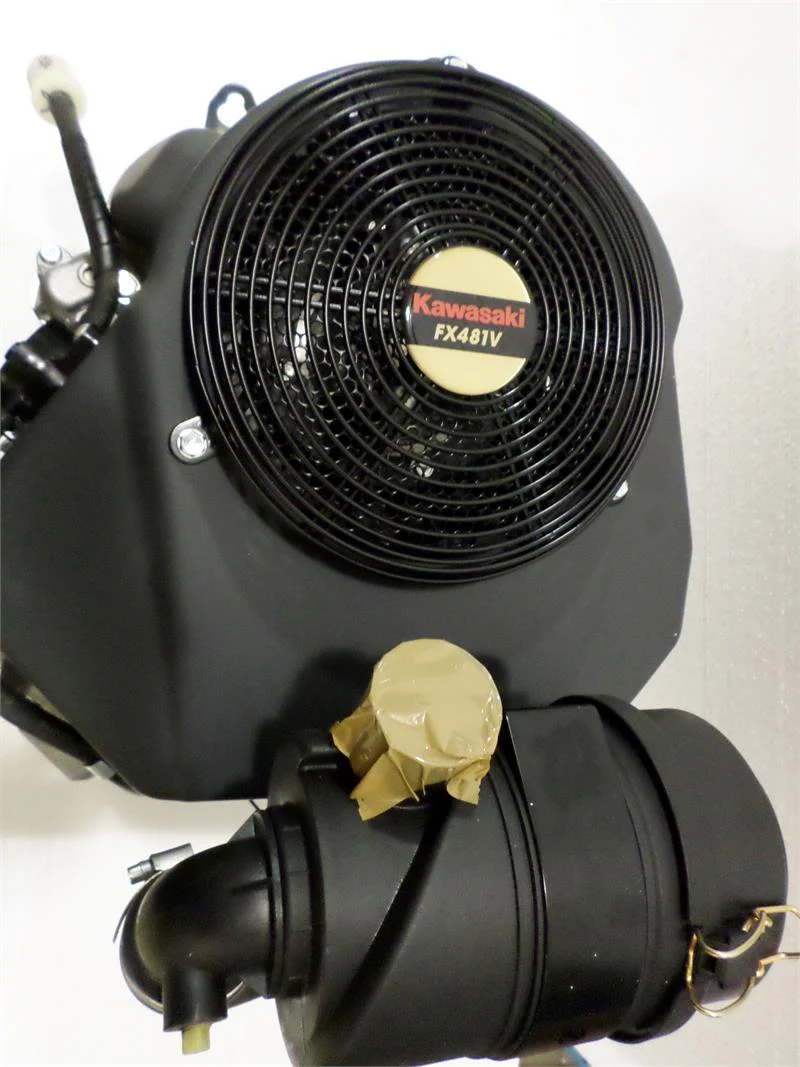

Kawasaki Vertical 15.5 HP 603cc ES Engine 1-1/8" x 3.94" #FX481V-CS08 - Image 6

Kawasaki Vertical 15.5 HP 603cc ES Engine 1-1/8" x 3.94" #FX481V-CS08

Kawasaki Vertical 15.5 HP 603cc ES Engine 1-1/8" x 3.94" #FX481V-CS08



15.5 hp
The FX481V engine is quality power that shows up to work, day after day.
Forced Air-Cooled V-twin 4-cycle Vertical Shaft OHV Gasoline Engine
15.5hp Kawasaki OHV
1-1/8" x 3-15/16" shaft
Electric start-shift type starter, 15amp alternator.
Less fuel tank
Less Muffler
Replacement engine for commercial zero turns and riding mowers.
3 year consumer from Kawasaki.
Model FX481V-CS08



With a metal engine cover and a heavy duty shift-type starter, this V-twin 4-cycle engine brings performance you can count on.
Specifications
Displacement
603 cc (36.8 cu. in.)
Number of Cylinders
2
Bore x Stroke
2.9 x 2.8 in. (73 x 72mm)
Compression Ratio
8.1:1
Oil capacity w/filter
1.8 U.S. qt ( 1.7 liters)
Maximum Power
15.5 hp (11.6 kW)
at 3,600 RPM
Maximum Torque
31.4 ft lbs (42.6 N·m)
at 1,800 RPM
Dry weight w/o muffler
89.7 lbs (36.7 kg)

Product Information

Shipping & Returns

Description

Kawasaki Vertical 15.5 HP 603cc ES Engine 1-1/8" x 3.94" #FX481V-CS08



15.5 hp
The FX481V engine is quality power that shows up to work, day after day.
Forced Air-Cooled V-twin 4-cycle Vertical Shaft OHV Gasoline Engine
15.5hp Kawasaki OHV
1-1/8" x 3-15/16" shaft
Electric start-shift type starter, 15amp alternator.
Less fuel tank
Less Muffler
Replacement engine for commercial zero turns and riding mowers.
3 year consumer from Kawasaki.
Model FX481V-CS08



With a metal engine cover and a heavy duty shift-type starter, this V-twin 4-cycle engine brings performance you can count on.
Specifications
Displacement
603 cc (36.8 cu. in.)
Number of Cylinders
2
Bore x Stroke
2.9 x 2.8 in. (73 x 72mm)
Compression Ratio
8.1:1
Oil capacity w/filter
1.8 U.S. qt ( 1.7 liters)
Maximum Power
15.5 hp (11.6 kW)
at 3,600 RPM
Maximum Torque
31.4 ft lbs (42.6 N·m)
at 1,800 RPM
Dry weight w/o muffler
89.7 lbs (36.7 kg)
